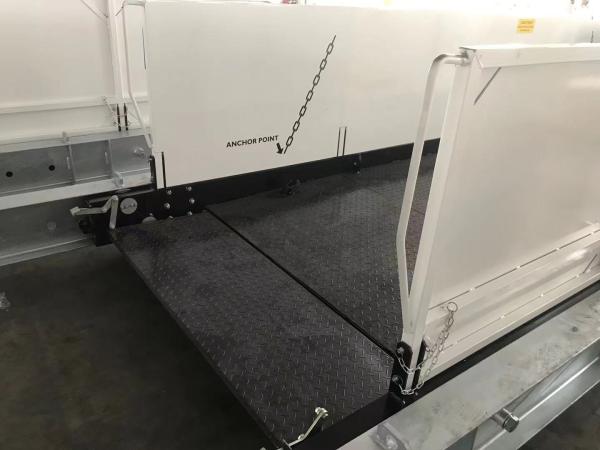

Sand Blasting 2200mm Telescopic Loading Platform For Building

  • 1
  • 2
  • 3

Brand Name : TECHWAY

Model Number : MLP2200-H

Certification : Mill Certificate & Full-load Certificate

Place of Origin : China

MOQ : 1 Unit

Price : USD8,600.00-9,500.00 per unit

Payment Terms : L/C, T/T

Supply Ability : 100 Units per month

Delivery Time : 40 Days after advance payment

Packaging Details : 2 Units in 1x20'GP, Nude in Container

Max. Load : 5000kg

Platform Width : 3.2m

Max. Outboard Length : 5.3m

Treatment : Main Frame & Props are with Hot Dip Galvanization

Painting : Sand Blasting & Epoxy Paint

Contact Now

MLP2200-H 5ton Capacity Retractable Loading Bay for Multi-Story Construction Sites

The Crane Loading Deck mainly consist of stationary frame, moving frame and adjustable support props. The stationary frame is located on the floor slab of the building and a “H” frame in stationary frame is kept close to the slab edge; the movable deck rolls in or out on the stationary frame by the rollers fixed in the stationary frame and movable deck. To receive the material, rolls the movable deck out of the building edge.

Crane Loading Deck Features

1. Easy pull/push system

2. Max. outboard length:5.3m

3. Max. load capacity:5ton

4. Platform width: 2.2m

5. With adjustable props for different floor heights

6. Compact design makes the transportation & installation much easier

7. With easy locking system

8. All pins are with chains

Sand Blasting 2200mm Telescopic Loading Platform For Building

Sand Blasting 2200mm Telescopic Loading Platform For Building
